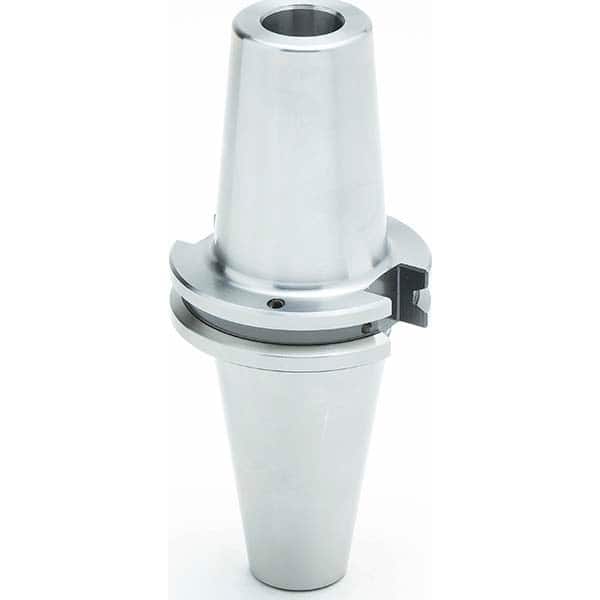

Parlec - Shrink-Fit Tool Holders & Adapters Shank Type: Taper Shank Taper Size: CAT40
Item #: 10339919
Brand: Parlec
Model #: C40-50SF315-9C
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
Product Specifications
Shrink-Fit Tool Holders & Adapters; Shank Type: Taper Shank ; Taper Size: CAT40 ; Hole Diameter (Inch): 0.5 ; Projection (Decimal Inch): 3.1500 ; Nose Diameter (Decimal Inch): 0.9400 ; Through Coolant: Yes
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 0.5 |
| Projection (Decimal Inch) | 3.1500 |
| Nose Diameter (Decimal Inch) | 0.9400 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.8500 |
| Overall Length (Decimal Inch) | 5.84000 |
| Balanced to (RPM) | 25000 |
| TIR (mm) | 0.0020 |
