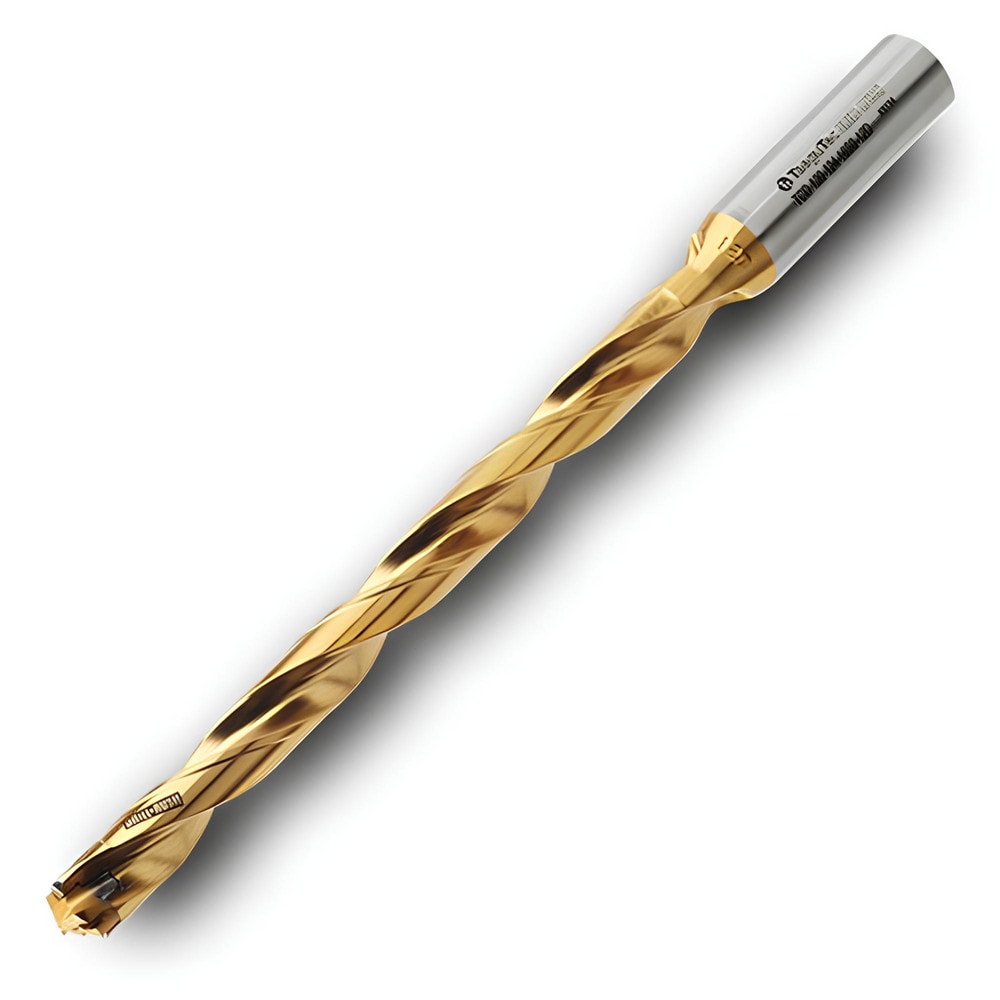

Brand: Ingersoll Cutting Tools / Part #: 6319430
Item #: 98735186
Brand: Ingersoll Cutting Tools
Model #: 6319430
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4330 |
| Maximum Drill Diameter (Decimal Inch) | 0.4488 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 5.2800 |
| Shank Type | Cylindrical |
| Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | 11 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Compatible Insert Size Code | 11.. |
| Overall Length (Decimal Inch) | 7.4800 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (Decimal Inch) | 7.4800 |
| Body Length (Decimal Inch) | 7.4800 |
| Shank Length (Decimal Inch) | 1.8900 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | PVD |
