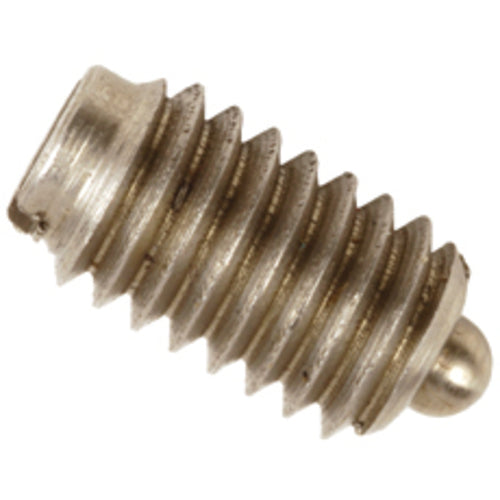

End Force Spring Plunger - 3 lbs Initial End Force, 10.5 lbs Final End Force (1/4″–20 Thread)
Item #: SG5052403
Brand: Te-Co
Model #: 52403
| Product Specifications | |
|---|---|
| Type | Standard Spring Plunger |
| Body Material | Steel |
| Thread Size | 1/4″-20 |
| Nose Material | Carbon or Stainless Steel Nose |
| Body Length | 17/32″ |
| Ball Diameter | 0.119″ |
| Initial End Force | 3.00 lbs |
| Maximum Ball Reach | 0.078″ |
| Final End Force | 10.50 lbs |
