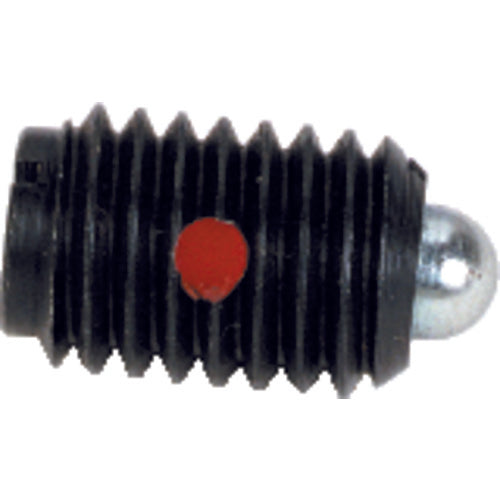

End Force Spring Plunger-Short - 1 lbs Initial End Force, 3.5 lbs Final End Force (1/4″–20 Thread)
Item #: SG5053503
Brand: Te-Co
Model #: 53503
| Product Specifications | |
|---|---|
| Type | Short Spring Plunger |
| Body Material | Stainless Steel |
| Thread Size | 1/4″-20 |
| Nose Material | Steel or Stainless Steel |
| Body Length | 17/32″ |
| Ball Diameter | 0.119″ |
| Initial End Force | 1.00 lbs |
| Maximum Ball Reach | 0.078″ |
| Final End Force | 3.50 lbs |
