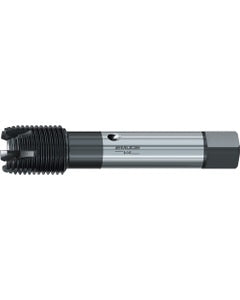

1 7/8-8 UN-3B ROB.2X-VA
Item #: ER4513381
Brand: EMUGE-FRANKEN
Model #: CU803011.5259
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1-7/8″ |
| Tool Type | Modified Bottoming Tap |
| Threads per Inch (TPI) | 8 |
| Chamfer | 2P-3P |
| Thread Standard | | UN | |
| Coating | NE2 |
| Overall Length (OAL) | 8.858″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.519″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 |
| Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | |
| Series/List # | U803011 |
| Cutting Edge Material | HSSE |
| Application | Through Hole | Blind Hole |
| Thread Tolerance Class (TCTR) | | 3BX | |
