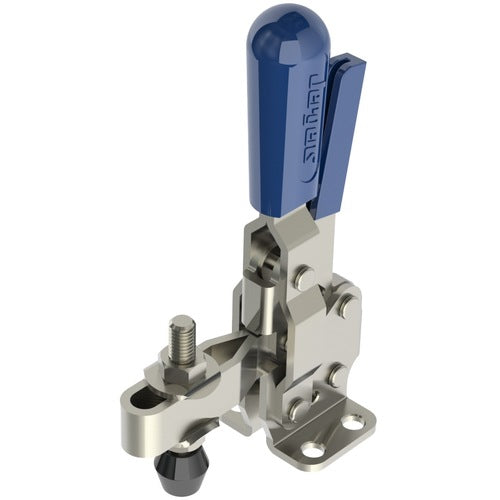

382 lbs Capacity - Adjustable U-Bar - Vertical with Additional Locking Mechanism - Hold Down Action Toggle Clamp
Item #: SG6670152
Brand: Jergens
Model #: 70152
| Product Specifications | |
|---|---|
| Style | Vertical with Additional Locking Mechanism |
| Mounting Diameter | 0.28″ |
| Type | Hold Down Action Toggle Clamp |
| Mounting Length | 0.75″ |
| Arm | 2.26″ |
| Mounting Width | 1.25″ |
| Height Under Clamp Arm | 1.22″ |
| Overall Width | 1.75″ |
| Holding Capacity | 382 lbs |
| Spindle Size | M8 × 2.16″ |
| Overall Height | 6.85″ |
| Base Length | 1.38″ |
| Overall Length | 3.94″ |
| Range | 1.26″ |
| Thread Size | M8 |
| Toggle Lock Plus Lever | Yes |
| Bar Style | Adjustable U-Bar |
| Clamp Arm Length | 2.26″ |
