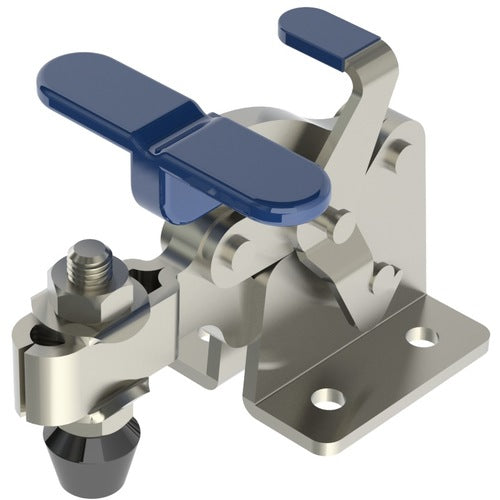

760 lbs Capacity - T-Handle - Adjustable U-Bar - Horizontal with Additional Locking Mechanism - Hold Down Action Toggle Clamp
Item #: SG6670162
Brand: Jergens
Model #: 70162
| Product Specifications | |
|---|---|
| Style | Horizontal with Additional Locking Mechanism |
| Mounting Diameter | 0.33″ |
| Type | Hold Down Action Toggle Clamp |
| Mounting Length | 1.38″ |
| Arm | 2.66″ |
| Mounting Width | 1.49″ |
| Height Under Clamp Arm | 1.35″ |
| Overall Width | 2.46″ |
| Holding Capacity | 760 lbs |
| Spindle Size | 3/8″-16 × 3.5″ |
| Overall Height | 3.64″ |
| Base Length | 2.5″ |
| Overall Length | 5.16″ |
| Range | 1.02″ |
| Handle | T-Handle |
| Toggle Lock Plus Lever | Yes |
| Thread Size | 3/8″-16 |
| Clamp Arm Length | 2.66″ |
| Bar Style | Adjustable U-Bar |
