#60150 - 1/2_13 Thread Size - Machinable Uniforce Clamp with Locking Plate - Exact Tooling

#60150 - 1/2_13 Thread Size - Machinable Uniforce Clamp with Locking Plate


Item #: SG7060150
Manufacturer: Mitee-Bite
Mfg #: 60150

Technical Specifications:
*Base Width: 1.215 *Brand Name: Mitee-Bite *Clamp Length: 1.87 *Clamp Width: 3.00 *Contact Depth: .750 *Description: With Locking Plate *Height: 1.50 *Height Above Flange: 3/4 *Holding Force: 3500 lbs *Machineable Stock: .62 *Model No.: 1500 *Mounting Screw Center Distance: 1.200 *Outer Edge Screws: 10-32 *Package Includes: 1 Clamp Assembly with Locking Plate *Style: Inch *Thread Size: 1/2-13

Description:

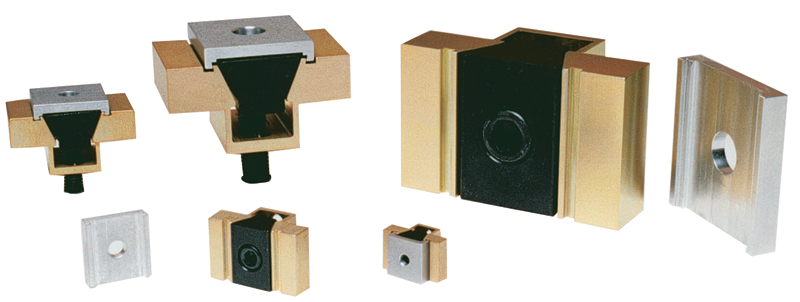

*Machinable Uniforce Clamps *The compact Uniforce¨ clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece - enabling you to fixture unusual applications easily *The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel **A: The distance needed between workpieces for clamp clearance, drill and tap mounting holes on the center of "A" dimension *F: The amount of machinable stock on jaws ***H: Mounting screws included *NOTE: Locking plate properly expands the clamp, while making it rigid for machining - Machine to a slip fit on workpiece - Remove locking plate before clamping workpiece

Shipping Info:
*Actual Weight - 1.0000 *Dimensions - Height: 2.00 Length: 4.00 Width: 2.00
$ 92.29
