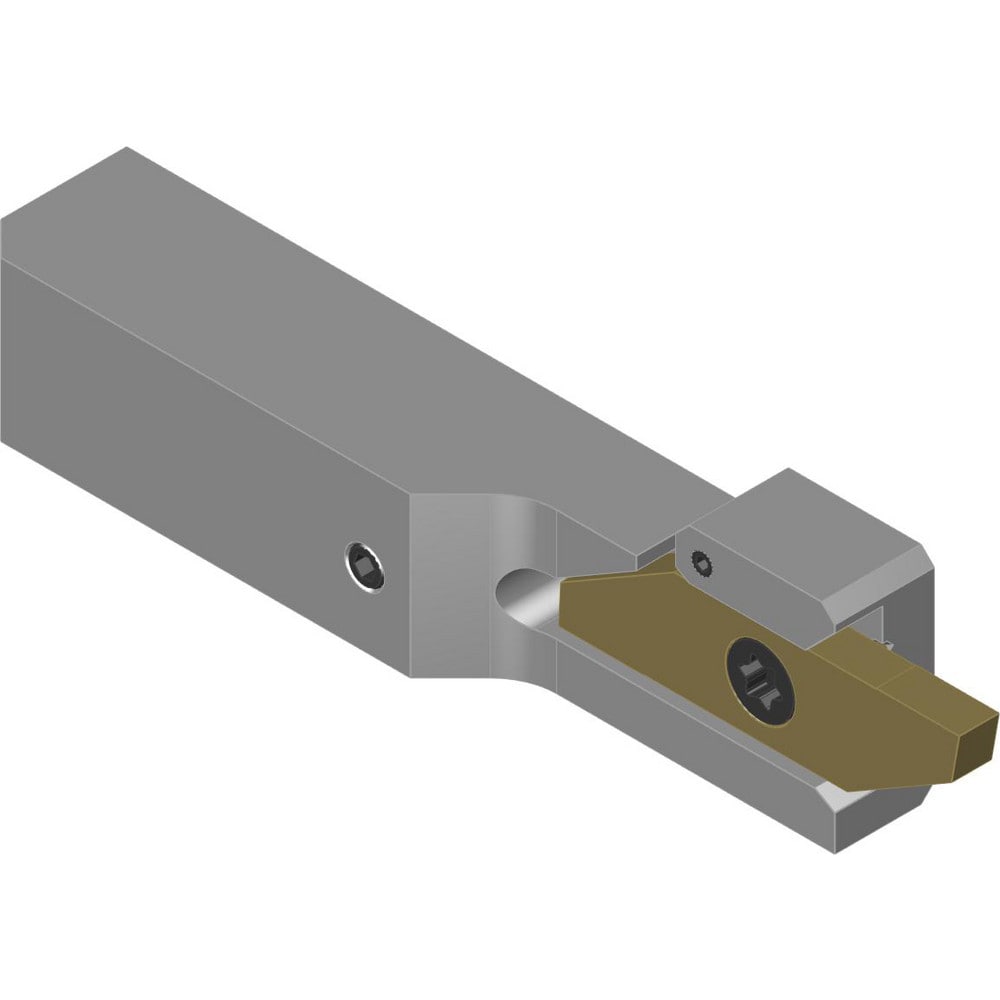

Brand: Arno / Part #: 112077
Item #: 11370046
Brand: Arno
Model #: 112077
Product Specifications
| Internal or External | External |
| Toolholder Type | External Grooving |
| Insert Seat Size | 8.00 |
| Hand of Holder | Left Hand |
| Cutting Direction | Neutral |
| Maximum Depth of Cut (mm) | 8.50 |
| Minimum Groove Width (mm) | 0.50 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | Deco-Cut Swiss Groove / Turn |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | L.. 08... |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Series | Deco-Cut for AFC |
| Shank Length (mm) | 49.000 |
| Overall Length (mm) | 70.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | External Grooving; Undercutting; Turning; Parting; Small Parts Machining; Threading |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Head Length (mm) | 21.00 |
| Multi-Use Application | Cut-Off, Grooving, Profiling, Turning; Back Turning; Threading |
| Toolholder Material | Alloy Steel |
| Insert Hand | Left Hand |
| Coolant Through | Yes |
