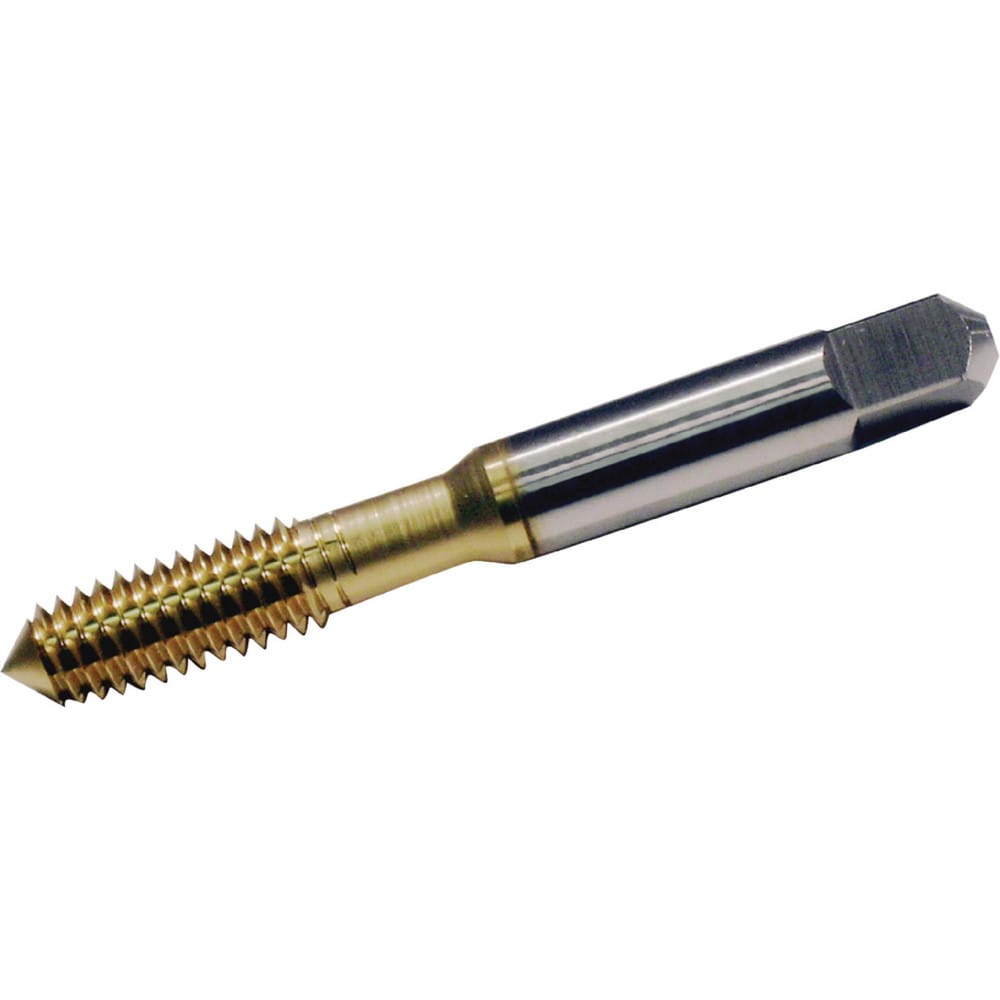

Brand: Widia / Part #: 2747453
Item #: 98852189
Brand: Widia
Model #: 2747453
Product Specifications
| Thread Size (Inch) | #10-24 |
| Overall Length (Decimal Inch) | 2.3800 |
| Chamfer | Bottoming |
| Coating/Finish | Uncoated |
| Thread Limit | H6 |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.5000 |
| Thread Depth | 0.8750 |
| Thread Depth (Decimal Inch) | 0.8750 |
| Shank Diameter (Decimal Inch) | 0.1940 |
| Neck Length (Decimal Inch) | 0.3800 |
| Square Length (Decimal Inch) | 0.2500 |
| Material Application | Non-Ferrous Metals |
| Application | Metal |
| Series | 5902 |
| Tap Type | Blind; Through |
| Tapping Depth (Decimal Inch) | 0.8750 |
| Shank Length (Decimal Inch) | 1.5050 |
| Threads per Inch | 24 |
| Class Of Fit | 2B |
| Coolant Through | No |
