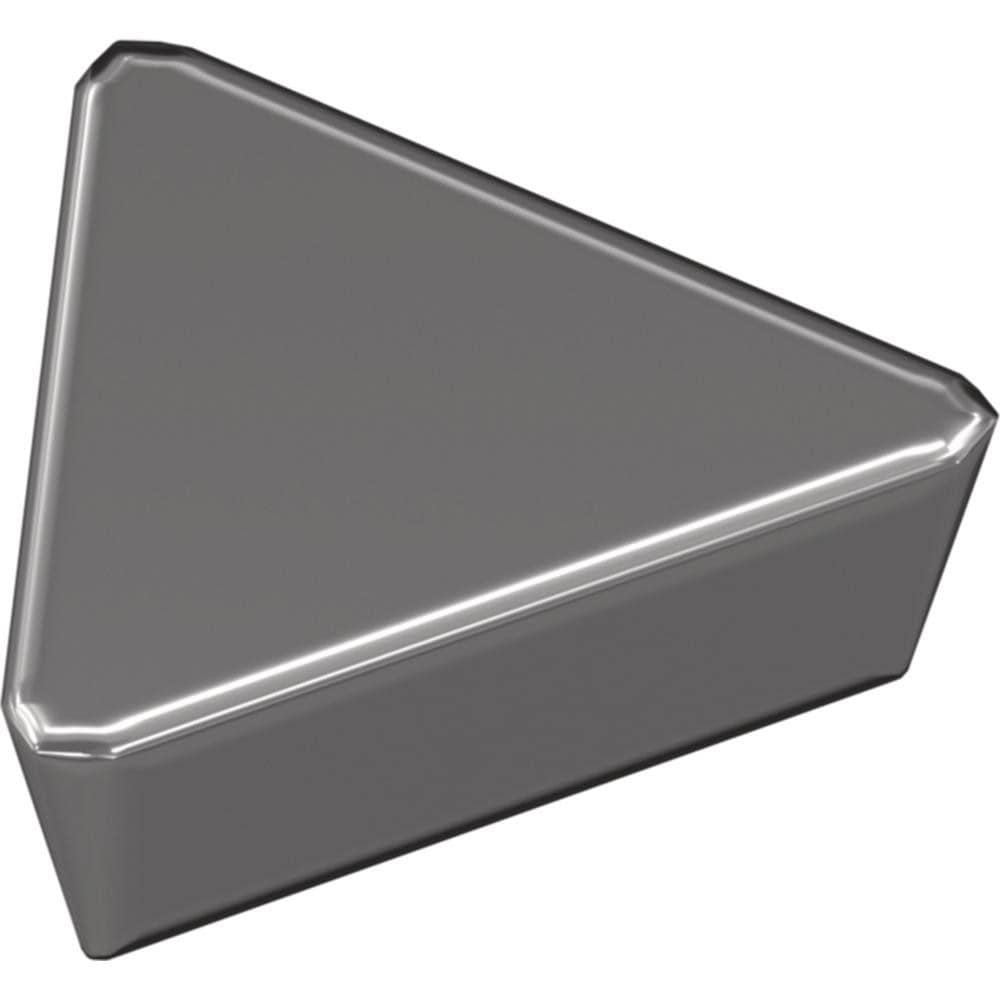

Brand: Widia / Part #: 2025076
Item #: 94030657
Brand: Widia
Model #: 2025076
Product Specifications
| Insert Style | TPAN |
| Insert Size Code | 1103 |
| Insert Size | 22 |
| Insert Material | Carbide |
| Manufacturer Grade | TTM09 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Neutral |
| Relief Angle | 11.500 |
| Series | TPAN |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | TPAN22PP |
| Iso Code | TPAN1103PP |
| Manufacturers Catalog Number | TPAN22PP |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Triangle |
| Length of Cut (mm) | 11.0000 |
| Insert Holding Method | Clamp |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Single |
| Coating/Finish | Uncoated |
| Included Angle Degree | 60 |
| Length | 11.00 |
| Width (Decimal Inch - 4 Decimals) | 0.4331 |
| Width (Mm - 2 Decimals) | 11.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4331 |
