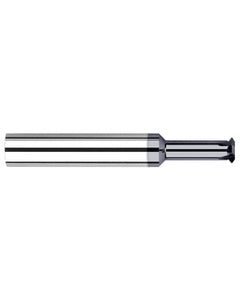

Thread Mill; 5/16″ × 1/4″ Shank Dia. × 2-1/2″ OAL ; Carbide ; AlTiN Nano
Item #: GE90773255C6
Brand: Harvey Tool
Model #: 773255-C6
| Product Specifications | |
|---|---|
| Thread Size | 5/16″ |
| Threads per Inch Maximum (TPIX) | 48 |
| Thread Standard | UN |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Flute Type | Spiral |
| Cutting Diameter (DC) | 0.24″ |
| Measurement Type | Inch |
| Functional Length (LF) | 5/8″ |
| Tool Type | Single Form |
| Overall Length (OAL) | 2-1/2″ |
| Cutting Direction (HAND) | | Left Hand | Right Hand | |
| Flute Count (NOF) | 5 |
| Body Material | Carbide |
| Shank Type | Round |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Coating | AlTiN Nano |
| Thread Form Type (THFT) | UN60 |
| Threads per Inch Minimum (TPIN) | 16 |
