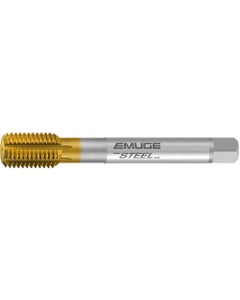

M 14X1.5-6HX REK.2DR-S-OLN TIN
Item #: ER4514473
Brand: EMUGE-FRANKEN
Model #: C0921400.0331
| Product Specifications | |
|---|---|
| Tool Type | Modified Bottoming Form Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | M14 |
| Measurement Type | Metric |
| Thread Pitch (TP) | 1.5 mm |
| Cutting Edge Material | HSSE |
| Thread Tolerance Class (TCTR) | | 6HX | |
| Cutting Direction (HAND) | Right Hand |
| Application | Through Hole | Blind Hole |
| Series/List # | 921400 |
| Applicable Material | | General Purpose | |
| Thread Size | M14 × 1.5 |
| Coating | TiN |
