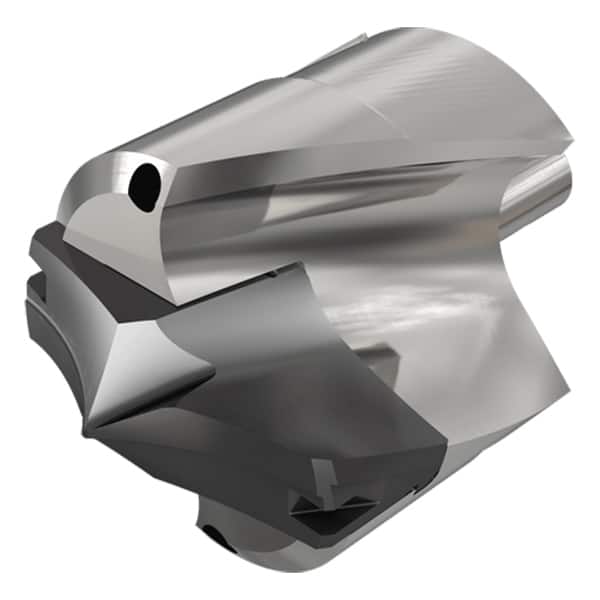

Iscar - Replaceable-Tip Drills Series: ModuDrill Minimum Drill Diameter (mm): 33.00
Item #: 15111453
Brand: Iscar
Model #: 3335852
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
Product Specifications
Replaceable-Tip Drills; Series: ModuDrill ; Minimum Drill Diameter (mm): 33.00 ; Minimum Drill Diameter (Decimal Inch): 1.2992 ; Maximum Drill Diameter (mm): 33.90 ; Maximum Drill Diameter (Decimal Inch): 1.3346 ; Drill Depth by Diameter Ratio: 1xD
| Series | ModuDrill |
| Minimum Drill Diameter (mm) | 33.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.2992 |
| Maximum Drill Diameter (mm) | 33.90 |
| Maximum Drill Diameter (Decimal Inch) | 1.3346 |
| Drill Depth by Diameter Ratio | 1xD |
| Maximum Drill Depth (Decimal Inch) | 1.4528 |
| Maximum Drill Depth (mm) | 36.90 |
| Shank Diameter (mm) | 6.7000 |
| Insert Style | HFP |
| Insert Seat Size | 33 |
| Toolholder Style | DFN |
| Through Coolant | Yes |
| Shank Type | Modular Connection |
| Tip Length (mm) | 7.33 |
| Tip Length (Decimal Inch) | 0.2886 |
| Body Length (mm) | 36.900 |
| Body Length (Decimal Inch) | 1.4528 |
| Overall Length (mm) | 36.9000 |
| Overall Length (Decimal Inch) | 1.45280 |
| Toolholder Material | Steel (Shank) |
| Shank Length (mm) | 10.700 |
| Shank Length (Decimal Inch) | 0.4213 |
| Shank Type | Modular Connection |
| Overall Length (mm) | 36.9000 |
| Number of Flutes | 2 |
| Cutting Direction | Right Hand |
