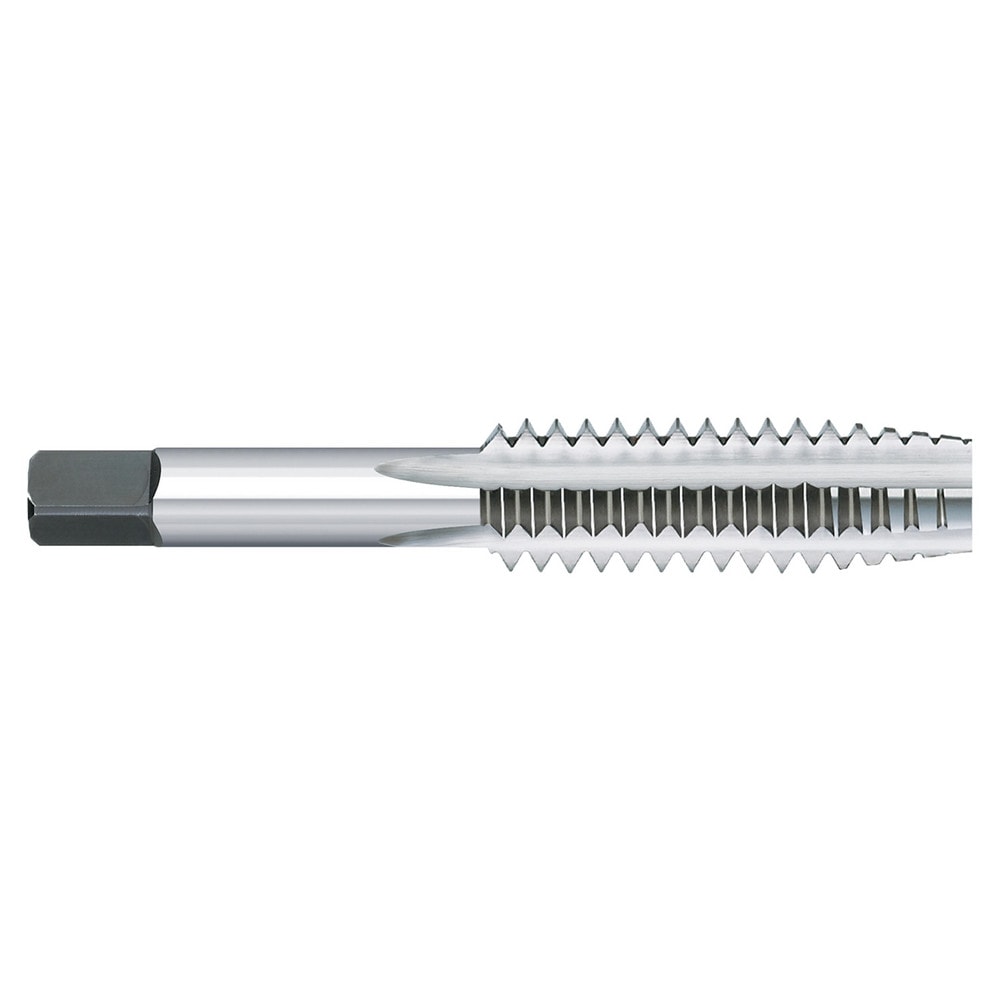

Brand: Titan USA / Part #: TT90734
Item #: 87438347
Brand: Titan USA
Model #: TT90734
Product Specifications
| Thread Size (Inch) | 2-1/4-8 |
| Thread Limit | H6 |
| Class Of Fit | 2B/3B |
| Number Of Flutes | 6 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 8 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UN |
| Overall Length (Inch) | 8-1/4 |
| Thread Pitch (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 8.2500 |
| Thread Length (Decimal Inch) | 3.5625 |
| Thread Length (Inch) | 3-9/16 |
| Shank Diameter (Decimal Inch) | 1.8940 |
| Square Length (Inch) | 1-7/16 |
| Square Size (Decimal Inch) | 1.4200 |
| Series | General Purpose Taps - High Speed Steel - Hand Taps - 8 Pitch |
