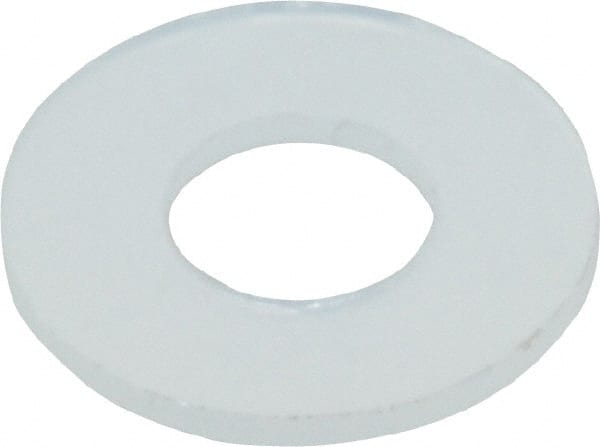

Electro Hardware - Flat Washers Type: Standard System of Measurement: Inch
Item #: 15655137
Brand: Electro Hardware
Model #: FW-2576-EH
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
Product Specifications
Flat Washers; Type: Standard ; System of Measurement: Inch ; Screw Size: 3/4 ; Inside Diameter (Inch): 0.765 ; Outside Diameter (Inch): 0.89 ; Thickness (Decimal Inch): 0.0270
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 3/4 |
| Inside Diameter (Inch) | 0.765 |
| Outside Diameter (Inch) | 0.89 |
| Thickness (Decimal Inch) | 0.0270 |
| Material Grade | Commercial |
| Material | Nylon |
| Finish/Coating | Uncoated |
| Fastener Standard | UL |
