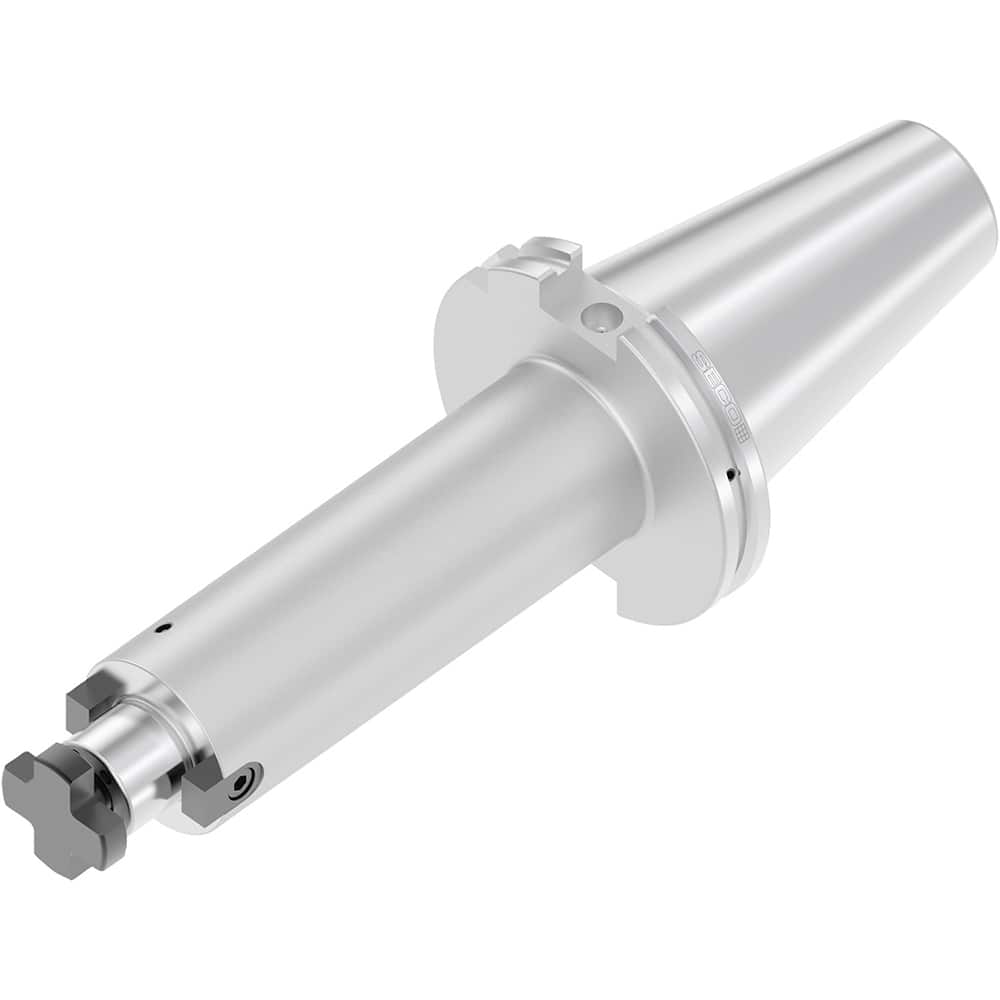

Seco - Shell Mill Holders & Adapters Shank Type: Taper Taper Size: DIN50
Item #: 14417562
Brand: Seco
Model #: 10007161
Product Specifications
Shell Mill Holders & Adapters; Shank Type: Taper ; Taper Size: DIN50 ; Pilot Diameter (mm): 32.000 ; Projection Flange to Nose End (mm): 51.90 ; Through Coolant: Yes ; Nose Diameter (mm): 58.00
| Shank Type | Taper |
| Taper Size | DIN50 |
| Pilot Diameter (mm) | 32.000 |
| Projection Flange to Nose End (mm) | 51.90 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 58.00 |
| Overall Length (mm) | 169.7500 |
| Through Coolant | Yes |
