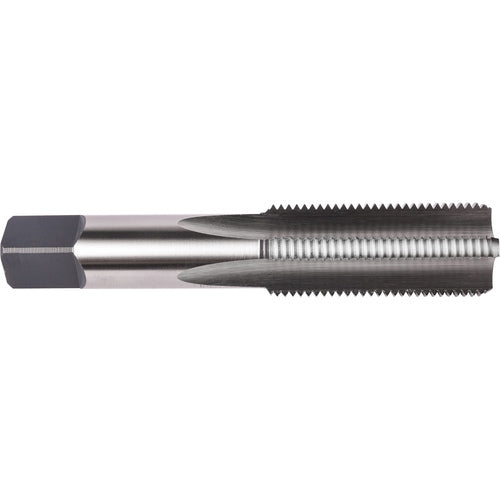

M20 2.50 MM 4 Flute Bottoming Union Butterfield HSS Bright M Hand Tap ANSI E-code # 1700M20X2.5NO3
Item #: TD251012539
Brand: Union Butterfield
Model #: 6008866
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M20 |
| Standard | ANSI |
| Thread Pitch (TP) | 2.5 mm |
| Tool Type | Hand Tap |
| Thread Standard | Metric |
| Coating | Bright |
| Overall Length (OAL) | 4-15/32″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 2″ |
| Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.652″ |
| Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 |
| Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 0.489″ |
| Cutting Edge Material | HSS |
| Measurement Type | Metric |
| Thread Tolerance Class (TCTR) | 6H|D7 |
| Thread Size | M20 × 2.5 |
