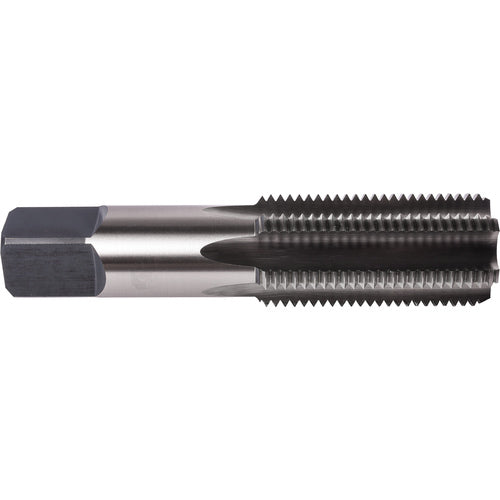

1-3/4″- 8 6 Flute Taper Union Butterfield HSS Bright UNS Hand Tap ANSI E-code # 15051.3/4NO1
Item #: TD251013325
Brand: Union Butterfield
Model #: 6007586
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1-3/4″ |
| Standard | ANSI |
| Threads per Inch (TPI) | 8 |
| Tool Type | Hand Tap |
| Thread Standard | NS |
| Coating | Bright |
| Overall Length (OAL) | 7″ |
| Flute Type | Straight |
| Thread Cutting Part Length (THL) | 3-3/16″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1.43″ |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 |
| Length Group | 1.5D |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Square Size | 1.072″ |
| Cutting Edge Material | HSS |
| Measurement Type | Fractional |
| Thread Tolerance Class (TCTR) | 2B|H6 |
| Thread Size | 1-3/4″ - 8 |
