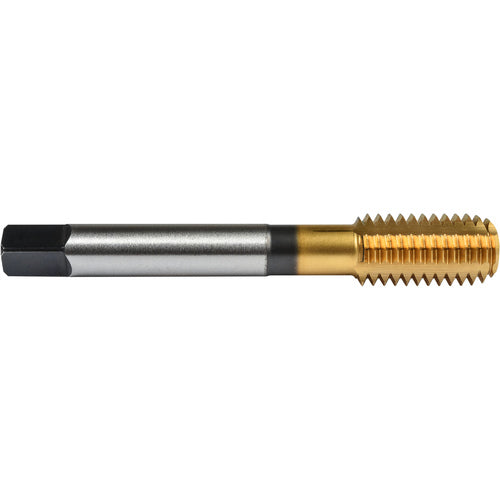

1/4″- 20 Union Butterfield HSS-PM TiN Applix UNC UNC Machine Forming Tap ANSI E-code # 16411/4X20H6
Item #: TD441712266
Brand: Union Butterfield
Model #: 6008109
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap|Machine Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1/4″ |
| Threads per Inch (TPI) | 20 |
| Overall Length (OAL) | 2-1/2″ |
| Chamfer | 1.5P-2P |
| Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Square Size | 0.191″ |
| Thread Tolerance Class (TCTR) | 2B|3B|H6 |
| Measurement Type | Fractional |
| Tap Standard | ANSI |
| Cutting Edge Material | HSSCoPM |
| Thread Standard | NC |
| Cutting Direction (HAND) | Right Hand |
| Coating | TiN |
| Thread Size | 1/4″ - 20 |
