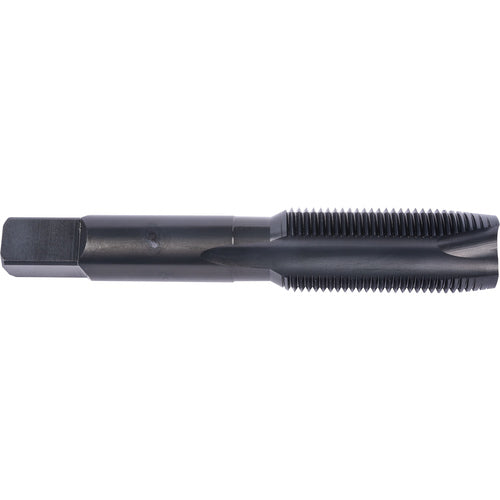

No.5 44 2 Flute Plug Union Butterfield HSS Steam Tempered UNF Machine Tap ANSI E-code # 19855-44
Item #: TD541013040
Brand: Union Butterfield
Model #: 6008797
| Product Specifications | |
|---|---|
| Thread Standard | NF |
| Tool Type | Machine Tap |
| Thread Size | #5 - 44 |
| Applicable Material | Steel | Hard Materials | Super-Alloys / Titanium |
| Thread Diameter Size (TDZ) | #5 |
| Connection Diameter Machine Side (DCONMS) | 0.11″ |
| Threads per Inch (TPI) | 44 |
| End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 2B |
| Style | Plug |
| Overall Length (OAL) | 1-15/16″ |
| Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Length Group | 2.5xD |
| Cutting Edge Material | HSS |
| Square Size | 3/16″ |
| Standard | ANSI |
| Measurement Type | Wire Gauge |
