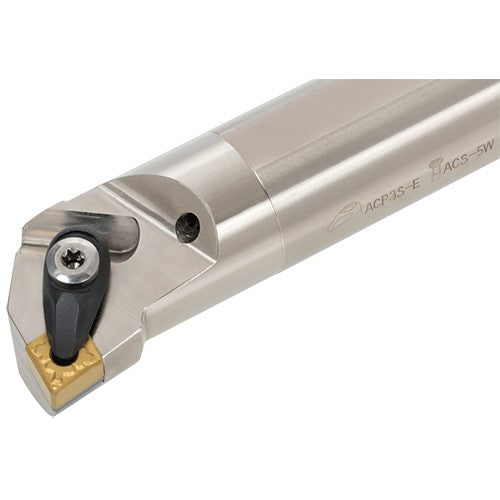

A25R-ACLNL0904-D320
Item #: TG206733300
Brand: Tungaloy
Model #: 6733300
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Minimum Bore Diameter (DMIN) | 32 mm |
| Functional Length (LF) | 200 mm |
| Application | | For 80deg Rhombic insert | |
| Head Length (LH) | 45 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 23 mm |
| Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 17 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | CNMG090408E |
| Measurement Type | Metric |
