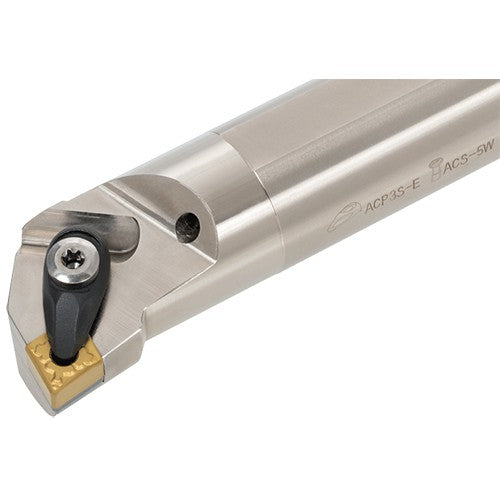

A32S-ACLNL0904-D400
Item #: TG206733302
Brand: Tungaloy
Model #: 6733302
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Minimum Bore Diameter (DMIN) | 40 mm |
| Functional Length (LF) | 250 mm |
| Application | | For 80deg Rhombic insert | |
| Head Length (LH) | 50 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 30 mm |
| Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 22 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | CNMG090408E |
| Measurement Type | Metric |
