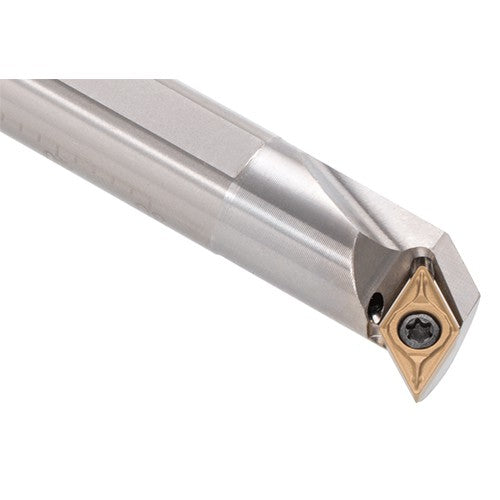

E12Q-SDUPL07-D180
Item #: TG206762780
Brand: Tungaloy
Model #: 6762780
| Product Specifications | |
|---|---|
| Shank Height (H) | 11 mm |
| Master Insert Identification (MIID) | DPMT070204 |
| Overall Length (OAL) | 180 mm |
| Application | | For 55deg Rhombic insert | For Miniature machining | |
| Functional Length (LF) | 150 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 27 mm |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Functional Width (WF) | 10.3 mm |
| Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 18 mm |
| Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
