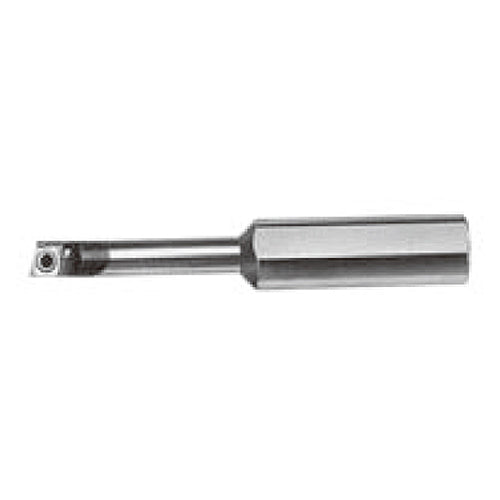

C12055-SEXPR04
Item #: TG206801177
Brand: Tungaloy
Model #: 6801177
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Application | | Boring Bars | |
| Functional Length (LF) | 62 mm |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Head Length (LH) | 30 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 2.8 mm |
| Body Material | Carbide |
| Master Insert Identification (MIID) | EPGT040104 |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 5.5 mm |
