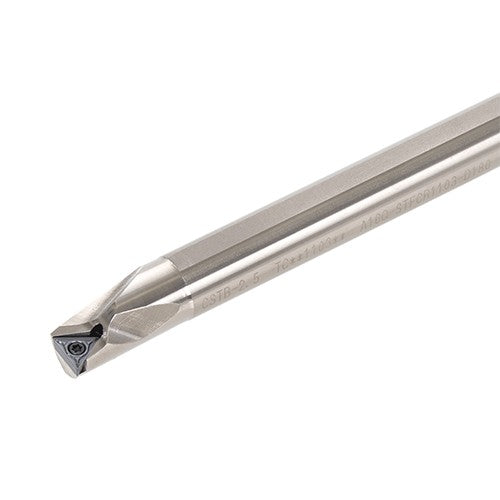

A16Q-STFCR1103-D180
Item #: TG206864792
Brand: Tungaloy
Model #: 6864792
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | For Miniature machining | For Triangular insert | |
| Functional Length (LF) | 180 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 32 mm |
| Rake Angle Radial (GAMF) | -7 Degrees |
| Shank Height (H) | 15 mm |
| Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 9 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | TCMT110304 |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 18 mm |
