LPTC16U3.00B1.25L3.0R04
Item #: TG256735573
Brand: Tungaloy
Model #: 6735573
| Product Specifications | |
|---|---|
| Application | | Shoulder Milling | |
| Overall Length (OAL) | 4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Master Insert Identification (MIID) | TC*T16... |
| Cutting Item Count (CICT) | 20 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.992″ |
| Measurement Type | Inch |
| Cutting Diameter (DC) | 3″ |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |

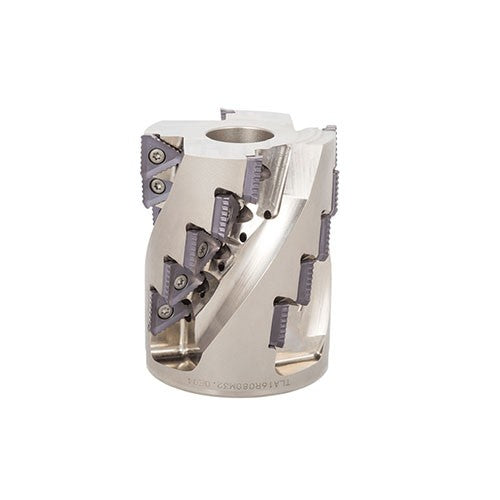

| Tool Type | 90 Extended flute shell mill |
