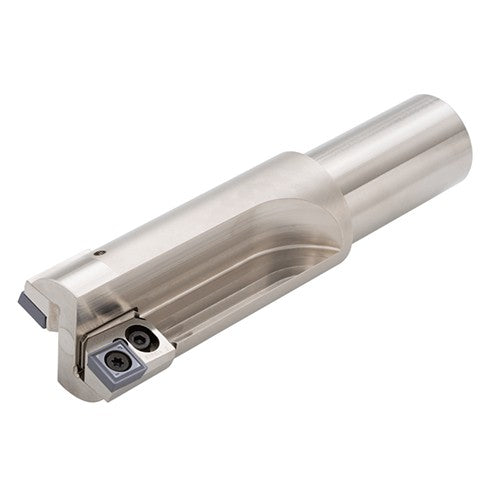

TCB550-590F32
Item #: TG256751537
Brand: Tungaloy
Model #: 6751537
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 59 mm |
| Weight of Item (WT) | 1.9 Kg |
| Cutting Diameter Maximum (DCX) | 59 mm |
| Head Length (LH) | 116 mm |
| Cutting Item Count (CICT) | 2 |
| Functional Length (LF) | 175 mm |
| Depth of Cut Maximum (APMX) | 10 mm |
| Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 175 mm |
| Tool Cutting Edge Angle (KAPR) | 91 Degrees |
| Application | | Multi Functional tools | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Body Material | Steel |
| Master Insert Identification (MIID) | SPMM432ER-CG |
| Shank Length (LS) | 59 mm |
