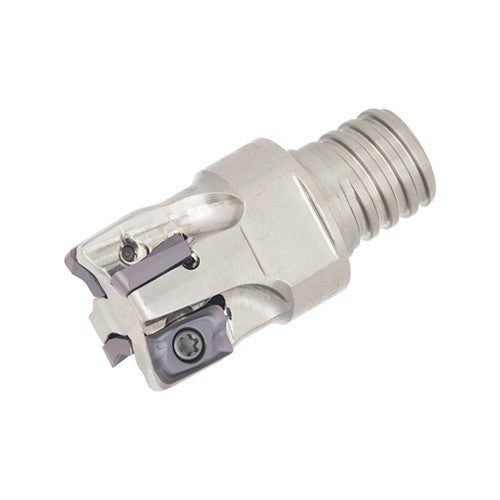

HPAV06M010S05R02
Item #: TG256757737
Brand: Tungaloy
Model #: 6757737
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 10 mm |
| Functional Length (LF) | 10 mm |
| Cutting Diameter (DC) | 10 mm |
| Tool Type | CUTTER - MODULAR TYPE |
| Cutting Diameter Maximum (DCX) | 10 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Cutting Item Count (CICT) | 2 |
| Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 6 mm |
| Body Material | Steel |
| Application | | Shoulder Milling | |
| Connection Retention Knob Thread Size (CRKS) | S05 |
| Master Insert Identification (MIID) | AVGT060304PBER-MJ |
| Shank Height (H) | 8 mm |
| Weight of Item (WT) | 0.01 Kg |
