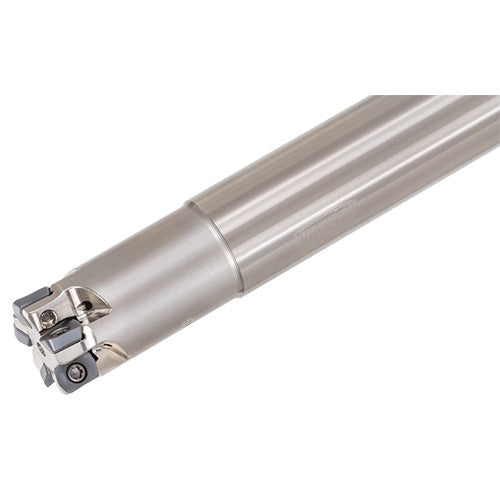

EXLS02M010C10.0LH20R02
Item #: TG256769407
Brand: Tungaloy
Model #: 6769407
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 6.28 mm |
| Master Insert Identification (MIID) | LSMT0202ZER-HM |
| Cutting Diameter (DC) | 6.28 mm |
| Weight of Item (WT) | 0.04 kg |
| Cutting Diameter Maximum (DCX) | 10 mm |
| Head Length (LH) | 20 mm |
| Cutting Item Count (CICT) | 2 |
| Functional Length (LF) | 80 mm |
| Depth of Cut Maximum (APMX) | 0.5 mm |
| Tool Type | CUTTER - SHANK TYPE |
| Overall Length (OAL) | 80 mm |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Round |
| Measurement Type | Metric |
| Application | | Face Milling | High Feed Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
