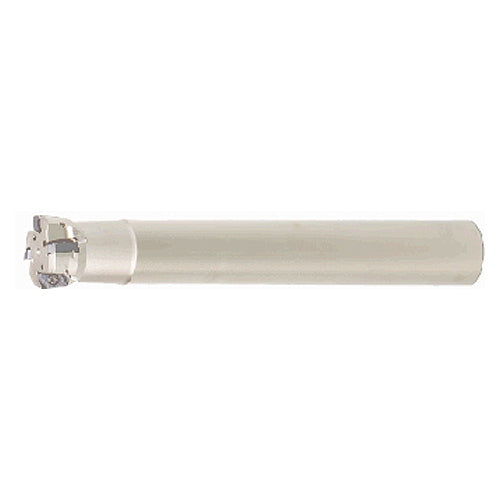

EXN03R020M20.0-04-C
Item #: TG256770504
Brand: Tungaloy
Model #: 6770504
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Master Insert Identification (MIID) | LNMU0303ZER-MJ |
| Cutting Diameter (DC) | 20 mm |
| Weight of Item (WT) | 0.3 Kg |
| Cutting Diameter Maximum (DCX) | 20 mm |
| Head Length (LH) | 50 mm |
| Cutting Item Count (CICT) | 4 |
| Functional Length (LF) | 130 mm |
| Depth of Cut Maximum (APMX) | 1 mm |
| Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 130 mm |
| Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Shank Type | Round |
| Measurement Type | Metric |
| Application | | Face Milling | High Feed Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Shank Length (LS) | 80 mm |
