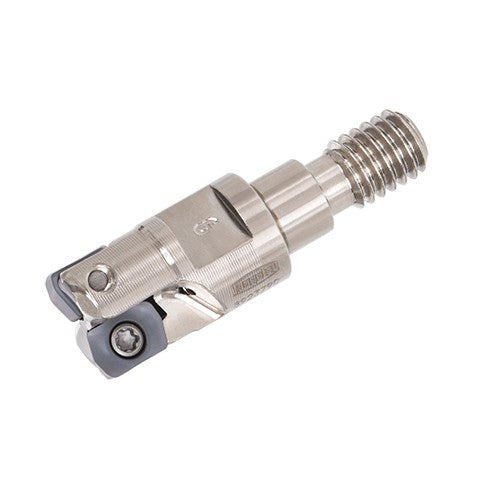

HXLS02M012M06R02
Item #: TG256772877
Brand: Tungaloy
Model #: 6772877
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 8.31 mm |
| Weight of Item (WT) | 0.01 kg |
| Cutting Diameter (DC) | 8.31 mm |
| Functional Length (LF) | 17 mm |
| Cutting Diameter Maximum (DCX) | 12 mm |
| Tool Type | Fast Feed Endmill |
| Cutting Item Count (CICT) | 2 |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Depth of Cut Maximum (APMX) | 0.5 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 31.5 mm |
| Body Material | Steel |
| Application | | Face Milling | High Feed Milling | |
| Connection Retention Knob Thread Size (CRKS) | M6 |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Shank Height (H) | 7 mm |
| Master Insert Identification (MIID) | LSMT0202ZER-HM |
