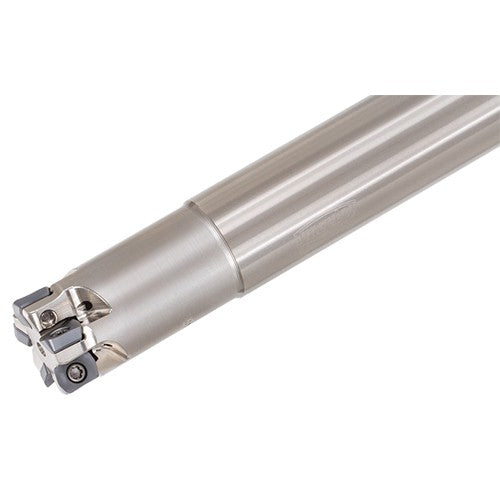

EXLS02U0.37C0.37LH1.25R01
Item #: TG256781789
Brand: Tungaloy
Model #: 6781789
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.228″ |
| Master Insert Identification (MIID) | LSMT0202ZER-HM |
| Cutting Diameter (DC) | 0.228″ |
| Weight of Item (WT) | 0.09 lbs |
| Cutting Diameter Maximum (DCX) | 3/8″ |
| Head Length (LH) | 1-1/4″ |
| Cutting Item Count (CICT) | 1 |
| Functional Length (LF) | 3-1/2″ |
| Depth of Cut Maximum (APMX) | 0.019″ |
| Tool Type | CUTTER - SHANK TYPE |
| Overall Length (OAL) | 3-1/2″ |
| Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Shank Type | Round |
| Measurement Type | Inch |
| Application | | Face Milling | High Feed Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/8″ |
