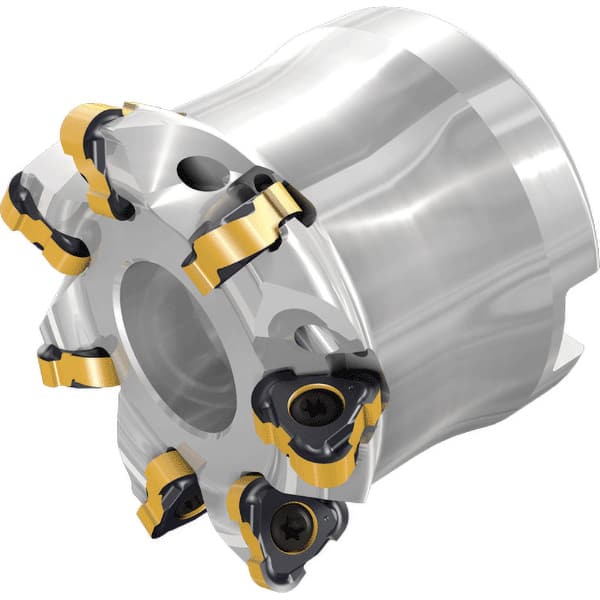

Iscar - Indexable Copy Face Mills Cutting Diameter (mm): 58.50 Cutting Diameter (Decimal Inch): 2.3030
Item #: 15111669
Brand: Iscar
Model #: 3344372
Product Specifications
Indexable Copy Face Mills; Cutting Diameter (mm): 58.50 ; Cutting Diameter (Decimal Inch): 2.3030 ; Maximum Depth of Cut (mm): 2.50 ; Maximum Depth of Cut (Decimal Inch): 0.0980 ; Arbor Hole Diameter (Inch): 1 ; Arbor Hole Diameter (Decimal Inch): 1.0000
| Cutting Diameter (mm) | 58.50 |
| Cutting Diameter (Decimal Inch) | 2.3030 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (mm) | 44.45000 |
| Overall Height (Decimal Inch) | 1.7500 |
| Series | TR6 |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | TR |
| Cutter Style | TOR6MILL |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.2500 |
| Hub Diameter (mm) | 57.150 |
| Overall Diameter (Decimal Inch) | 2.2500 |
| Overall Diameter (mm) | 57.1500 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
