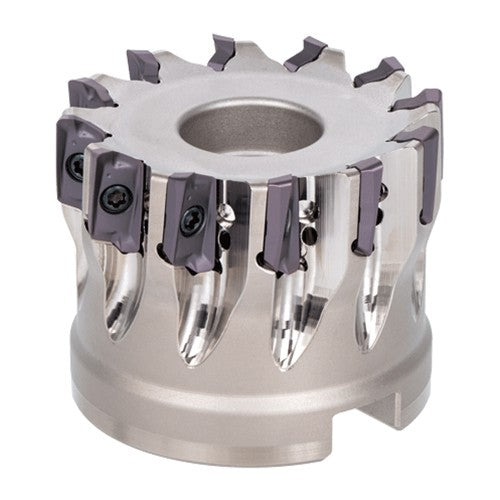

TPAV12M063B22.0R14
Item #: TG256839242
Brand: Tungaloy
Model #: 6839242
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 63 mm |
| Master Insert Identification (MIID) | AVMT120408PDER-MM |
| Cutting Diameter (DC) | 63 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 63 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 14 |
| Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 11.5 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
| Functional Length (LF) | 40 mm |
| Overall Length (OAL) | 40 mm |
