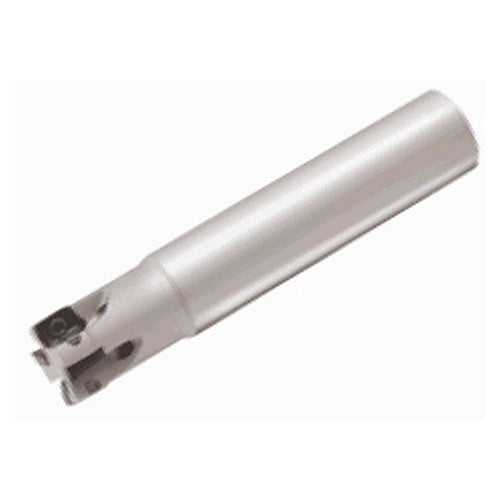

EPO07R016M16.0-04
Item #: TG256861231
Brand: Tungaloy
Model #: 6861231
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 16 mm |
| Master Insert Identification (MIID) | AOMT070204PDPR-MJ |
| Cutting Diameter (DC) | 16 mm |
| Weight of Item (WT) | 0.1 Kg |
| Cutting Diameter Maximum (DCX) | 16 mm |
| Head Length (LH) | 24 mm |
| Cutting Item Count (CICT) | 4 |
| Functional Length (LF) | 84 mm |
| Depth of Cut Maximum (APMX) | 7 mm |
| Tool Type | 90 indexable endmills |
| Overall Length (OAL) | 84 mm |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Shank Type | Round |
| Measurement Type | Metric |
| Application | | Shoulder Milling | |
| Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Shank Length (LS) | 60 mm |
