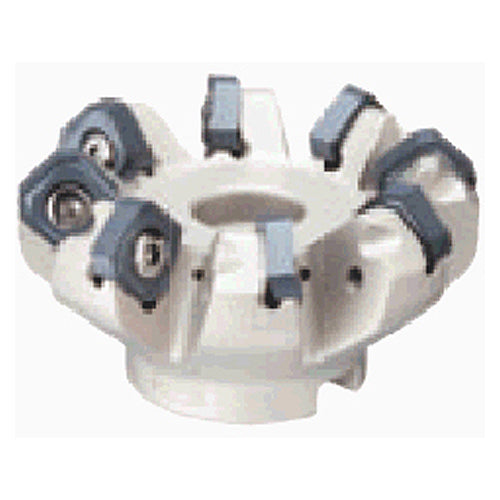

TAN07R160M40.0E10
Item #: TG256861840
Brand: Tungaloy
Model #: 6861840
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 173 mm |
| Weight of Item (WT) | 4 Kg |
| Cutting Diameter (DC) | 160 mm |
| Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 173 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 10 |
| Application | | Face Milling | |
| Depth of Cut Maximum (APMX) | 7.5 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Functional Length (LF) | 63 mm |
| Overall Length (OAL) | 63 mm |
| Tool Type | 45 Facemills |
| Master Insert Identification (MIID) | ONMU0705ANPN-MJ |
