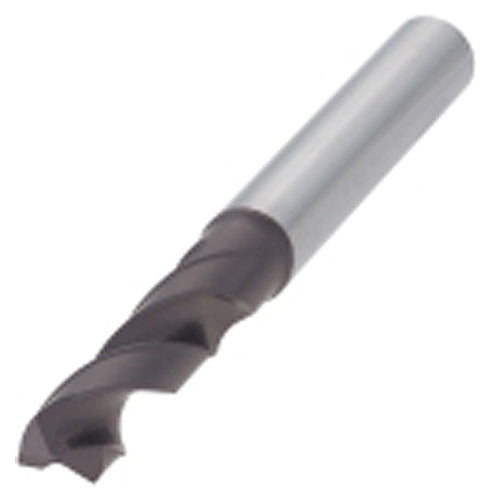

DSW041-029-06DE5 AH725
Item #: TG306154825
Brand: Tungaloy
Model #: 6154825
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 4.1 mm |
| Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.1 mm |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | solid carbide Drills |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Grade | AH725 |
| Application | | General Drilling | |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 29 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 36 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 74 mm |
| Point Length (PL) | 0.75 mm |
| Body Material | Carbide |
| Shank Length (LS) | 35 mm |
