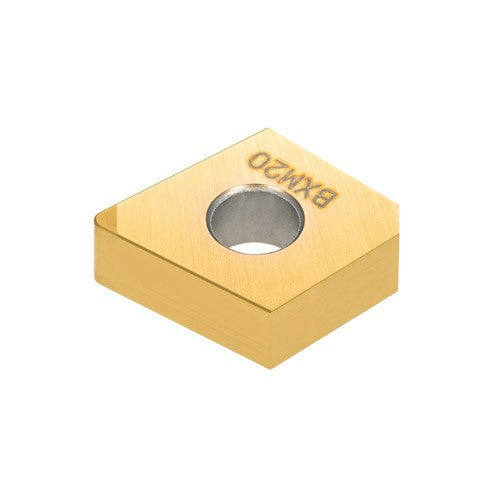

2QP-GNGA 431-LC BXA20
Item #: TG306790956
Brand: Tungaloy
Model #: 6790956
| Product Specifications | |
|---|---|
| Applicable Material | | Hard Materials | |
| Fixing Hole Diameter (D1) | 0.203″ |
| Application | | Inserts | |
| Min D.O.C. | 0.002″ |
| Insert Style | GNGA |
| Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.016″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Size | 431 |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 0.508″ |
| Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ |
| Chip Breaker Type | LC-CBN |
| Inscribed Circle Diameter (IC) | 1/2″ |
| Measurement Type | Inch |
| Cutting Edge Material | PCBN |
| Body Material | Carbide |
| Grade | BXA20 |
