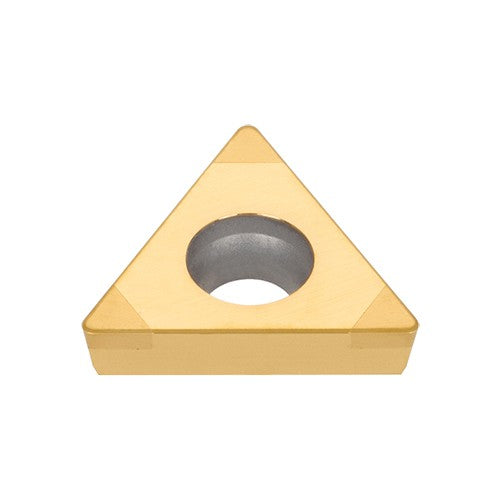

3QP-TPMW 32.51 BX950
Item #: TG306822418
Brand: Tungaloy
Model #: 6822418
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron |Hi Temp Alloys | |
| Tool Type | Turn Ultra hard Inserts |
| Application | | Boring Bars Round Shank | Boring Bars Square Shank | Cartridges | Digital Fine Boring Head | Posi,F style, 91deg Approach | Posi,U style, 95deg Approach | Top Borer Tools | |
| Fixing Hole Diameter (D1) | 0.173″ |
| Insert Style | TPMW |
| Min D.O.C. | 0.002″ |
| Corner Radius (RE) | 0.016″ |
| Depth of Cut Maximum (APMX) | 0.0197″ |
| Insert Size | 32.51 |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Cutting Edge Length (L) | 0.65″ |
| Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.156″ |
| Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | PCBN |
| Measurement Type | Inch |
| Grade | BX950 |
| Body Material | Carbide |
