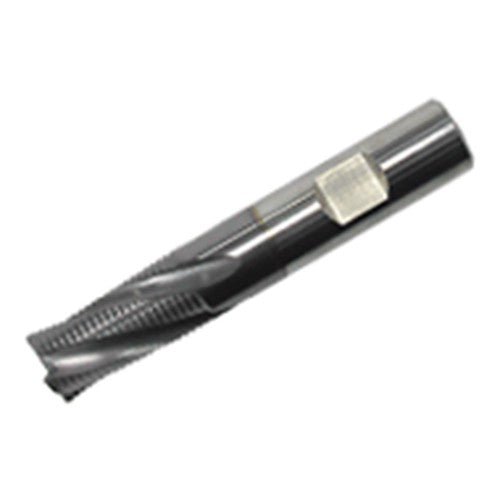

TECR080T4M-16W08-63 AH725
Item #: TG435621831
Brand: Tungaloy
Model #: 5621831
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Depth of Cut Maximum (APMX) | 16 mm |
| Application | | Shoulder Milling | |
| Overall Length (OAL) | 63 mm |
| Corner Chamfer Width (CHW) | 0.4 mm |
| Cutting Edge Material | Carbide |
| Grade | AH725 |
| Coating | TiAlN |
| Body Material | Carbide |
| Flute Count (NOF) | 4 |
| Measurement Type | Metric |
| Shank Type | Weldon |
