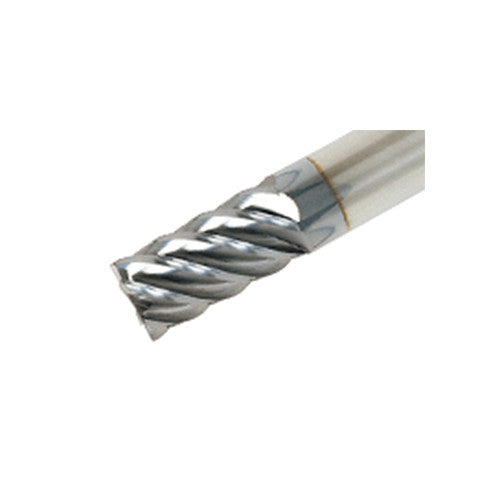

TECH080B6-20C08-63 AH750
Item #: TG435621951
Brand: Tungaloy
Model #: 5621951
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Applicable Material | | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Application | Finishing | Shoulder Milling |
| Depth of Cut Maximum (APMX) | 20 mm |
| Grade | AH750 |
| Overall Length (OAL) | 63 mm |
| Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Edge Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Coating | TiAlN |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 6 |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Square |
