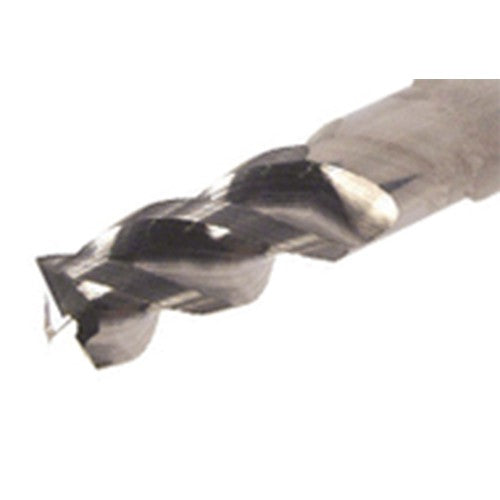

TECA160H3-24/80C16CF-R50 KS15F
Item #: TG435622845
Brand: Tungaloy
Model #: 5622845
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 16 mm |
| Applicable Material | | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 16 mm |
| Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 24 mm |
| Corner Radius (RE) | 5 mm |
| Overall Length (OAL) | 128 mm |
| Grade | KS15F |
| Cutting Edge Material | Carbide |
| Head Length (LH) | 80 mm |
| Flute Count (NOF) | 3 |
| Neck Length (LN) | 80 mm |
| Shank Type | Round |
| Body Material | Carbide |
| End Shape | Corner Radius |
| Measurement Type | Metric |
