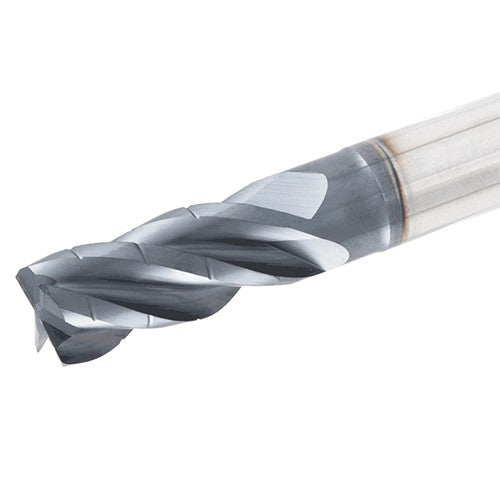

TECP080H4L-16/26W8CF-R04 AH725
Item #: TG435623464
Brand: Tungaloy
Model #: 5623464
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 16 mm |
| Corner Radius (RE) | 0.4 mm |
| Overall Length (OAL) | 63 mm |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Head Length (LH) | 26 mm |
| Coating | TiAlN |
| Neck Length (LN) | 26 mm |
| Flute Count (NOF) | 4 |
| Body Material | Carbide |
| Shank Type | Weldon |
| Measurement Type | Metric |
| End Shape | Corner Radius |
