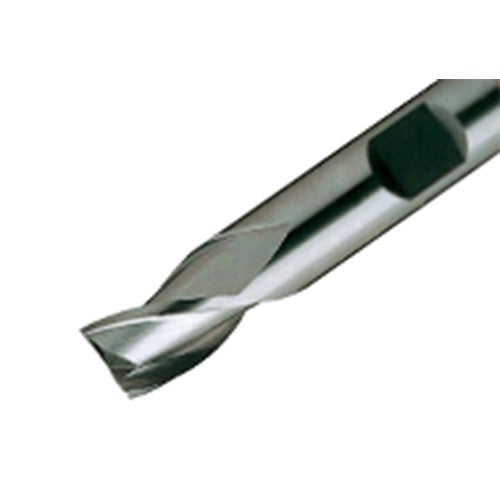

TEC120E3-15C12-E55 KS15F
Item #: TG435650529
Brand: Tungaloy
Model #: 5650529
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Applicable Material | | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Application | Shoulder Milling |
| Depth of Cut Maximum (APMX) | 15 mm |
| Grade | KS15F |
| Overall Length (OAL) | 55 mm |
| Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Edge Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.1 mm/tooth |
| Flute Count (NOF) | 3 |
| Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees |
| Body Material | Carbide |
| Shank Type | Round |
| Measurement Type | Metric |
| End Shape | Square |
