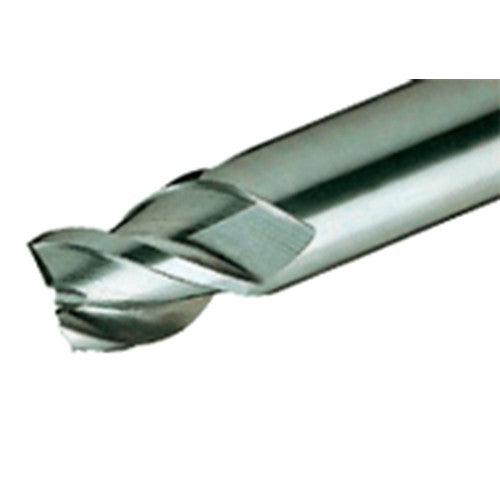

TEC030B3-04W06-50 AH725
Item #: TG435651163
Brand: Tungaloy
Model #: 5651163
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hi Temp Alloys | |
| Depth of Cut Maximum (APMX) | 4 mm |
| Application | Shoulder Milling |
| Overall Length (OAL) | 50 mm |
| Grade | AH725 |
| Cutting Edge Material | Carbide |
| Head Length (LH) | 6 mm |
| Coating | TiAlN |
| Body Material | Carbide |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Shank Type | Weldon |
