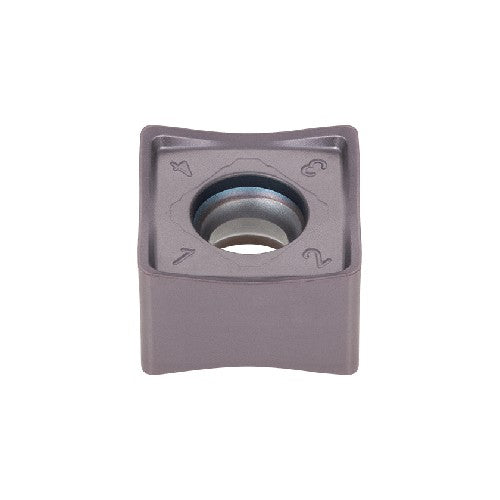

SNMU120608HNEN-MM T1215
Item #: TG436780142
Brand: Tungaloy
Model #: 6780142
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Maximum Feed per Tooth (fz(max)) | 0.012 in/tooth |
| Application | | Face Milling | |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.374″ |
| Tool Type | Double sided Inserts |
| Insert Thickness (S) | 0.295″ |
| Minimum Feed per Tooth (fz(min)) | 0.0008 in/tooth |
| Wiper Edge Length (BS) | 0.055″ |
| Cutting Edge Effective Length (LE) | 0.386″ |
| Coating | TiCN+Al2O3 |
| Measurement Type | Inch |
| Grade | T1215 |
| Body Material | Carbide |
