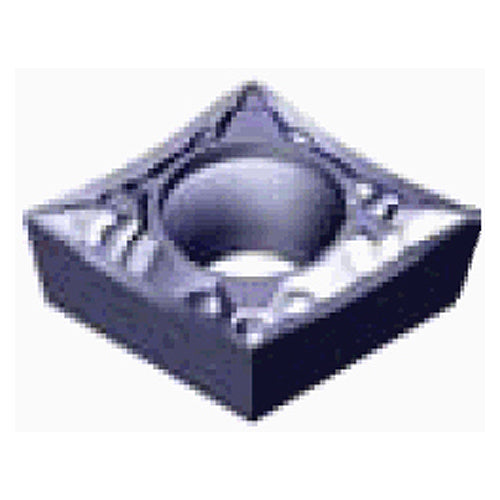

CCGT 5.52.21 F-JS SH725
Item #: TG556737271
Brand: Tungaloy
Model #: 6737271
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.091″ |
| Application | | Inserts | |
| Min D.O.C. | 0.0039″ |
| Insert Style | CCGT |
| Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.016″ |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Insert Size | 5.52.21 |
| Max. Turning Feed (ft(max)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.173″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.07″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 0.172″ |
| Chip Breaker Type | JS |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Grade | SH725 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
