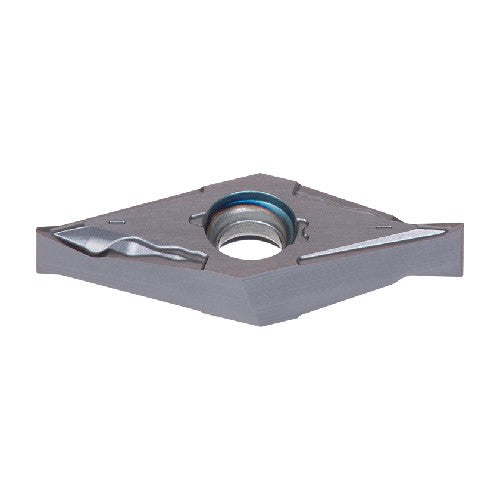

VXGU 73.51MFL-JS SH725
Item #: TG556750275
Brand: Tungaloy
Model #: 6750275
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hi Temp Alloys | |
| Min D.O.C. | 0.0039″ |
| Application | | Inserts | |
| Depth of Cut Maximum (APMX) | 0.0787″ |
| Insert Style | VXGU |
| Min. Turning Feed (ft(min)) | 0.002 ″/rev |
| Corner Radius (RE) | 0.016″ |
| Max. Turning Feed (ft(max)) | 0.0079 ″/rev |
| Insert Size | 73.51 |
| Clearance Angle Major (AN) | 5 Degrees |
| Cutting Edge Length (L) | 0.382″ |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 0.109″ |
| Chip Breaker Type | JS |
| Inscribed Circle Diameter (IC) | 0.219″ |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Series/List # | VXGU 73.51-JS |
| Grade | SH725 |
| Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.098″ |
