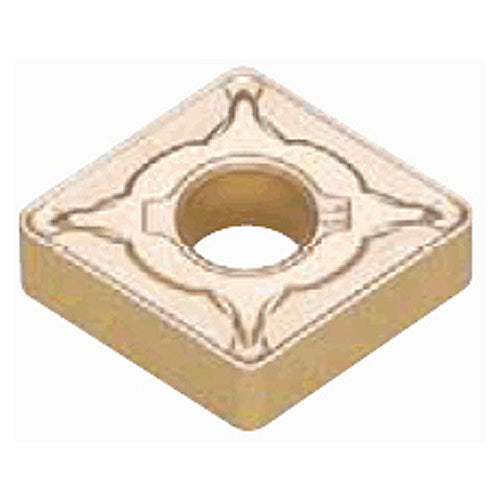

CNMG 866 THS T9215
Item #: TG556773843
Brand: Tungaloy
Model #: 6773843
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | |
| Tool Type | Turn Negative Inserts |
| Application | | Inserts | |
| Fixing Hole Diameter (D1) | 0.359″ |
| Insert Style | CNMG |
| Min D.O.C. | 0.059″ |
| Corner Radius (RE) | 0.094″ |
| Depth of Cut Maximum (APMX) | 0.4331″ |
| Insert Size | 866 |
| Min. Turning Feed (ft(min)) | 0.0118 ″/rev |
| Cutting Edge Length (L) | 1.016″ |
| Max. Turning Feed (ft(max)) | 0.0393 ″/rev |
| Insert Thickness (S) | 3/8″ |
| Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1″ |
| Chip Breaker Type | THS |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Series/List # | CNMG 866-THS |
| Grade | T9215 |
| Body Material | Carbide |
